U disk boot disk production tutorial [U disk installation system graphic tutorial]

Today, when it is popular to use U disk to install systems, I believe that U disk Installer Master is your best choice. U Disk Installer Master will bring you the best experience. Let us learn the usage tutorial of U Disk Installation Master through pictures and texts. (U Disk Installation Master can be used to install various popular Windows operating systems. The editor only takes win7 as an example)

The main steps are: preparation of software and hardware before installation; making U disk installation master U disk boot disk; entering BIOS to set U disk boot; using U disk to boot into the PE installation system.

Software and hardware preparation before installation:

I. A USB flash drive (the size depends on the system to be installed, generally 3 to 4G is sufficient);

II. Go to the Internet to get the ghost win7 system image file you want (U disk installation master can support ISO and GHO formats);

III. Then go to the U Disk Installation Master official website (website: http://www.upandashi.com) U Disk Installation Master U disk boot disk creation tool.

The first step is to create a U disk installation master U disk boot disk

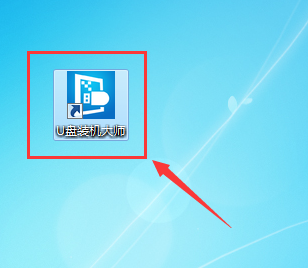

1. Open the U disk installation master installation package, and then click to execute the installation. After that, you can see the USB disk installation master icon on the desktop.

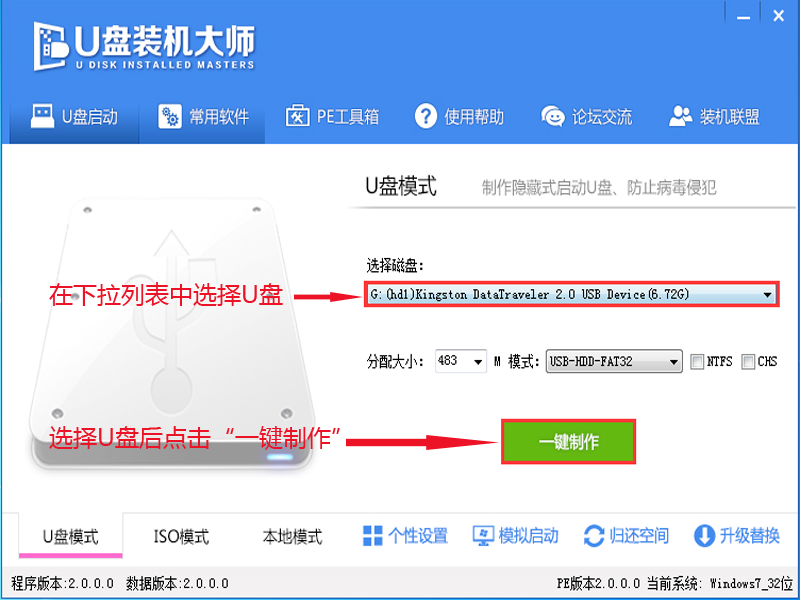

2. Connect the prepared U disk to the computer, open the U disk installation master on the desktop, and click "One-click creation" after the software successfully reads the U disk. (Since the production process involves reading and writing operations on removable disks, it may cause false alarms from security software or anti-virus software and cause program errors, so please add trust or turn off anti-virus and security software before production)

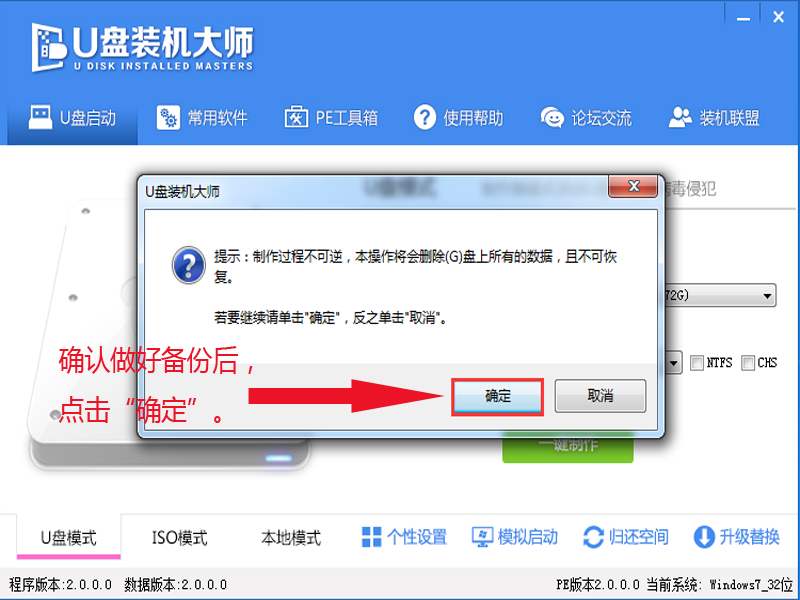

3. When the production starts, a prompt window will pop up, click "OK". Warning: Before clicking "OK", please confirm whether you have backed up the USB flash drive.

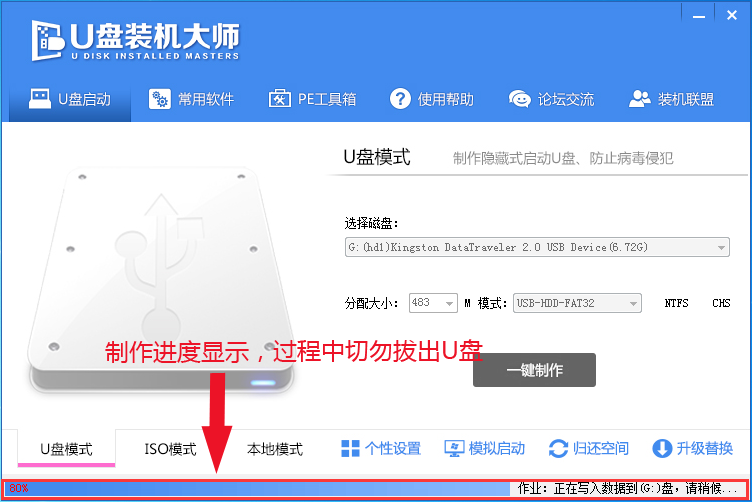

4. Next, just wait for the production to be completed. You can see the production process at the bottom of the U disk installation master interface.

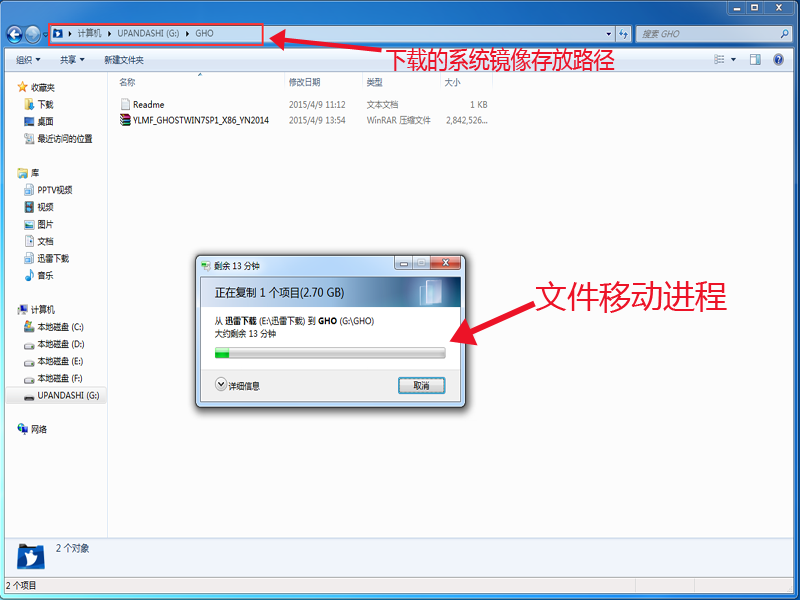

5. After the production is completed, open the USB flash drive. You can see the two folders "GHO" and "My Toolbox". Move the previous win7 system image file (both ISO and GHO formats can run perfectly in USB Installation Master) to the "GHO" folder.

The second step is to enter the BIOS and set up the USB disk to boot

6. Restart the computer. When the startup screen appears, press the startup shortcut key F12 (the specific key depends on the model of your computer. Below is a table of startup shortcut keys for various models, you can check it yourself), then select the option of the U disk in the interface (usually starts with USB or the brand name of the U disk), and press the Enter key to enter the main interface of U Disk Installation Master.

Assembly machine motherboard		Brand Notebook		Brand desktop
Motherboard brand	Start button	Laptop brand	Start button	Desktop brand	Start button
ASUS motherboard	F8	Lenovo notebook	F12	Lenovo Desktop	F12
Gigabyte motherboard	F12	Acer notebook	F12	HP Desktop	F12
MSI motherboard	F11	ASUS notebook	ESC	Acer desktop	F12
Biostar motherboard	F9	HP notebook	F9	Dell desktop	ESC
Meijie motherboard	ESC or F12	Lenovo Thinkpad	F12	Shenzhou Desktop	F12
Colorful motherboard	ESC or F11	Dell notebook	F12	ASUS Desktop	F8
ASRock motherboard	F11	Shenzhou Notebook	F12	Founder Desktop	F12
Spartak motherboard	ESC	Toshiba notebook	F12	Tsinghua Tongfang Desktop	F12
Onda motherboard	F11	Samsung Notebook	F12 or F2	Haier desktop	F12
Dual-sensitivity motherboard	ESC	IBM notebook	F12	BenQ Desktop	F8
ASL motherboard	F10	Fujitsu Notebook	F12
Elite motherboard	ESC or F11	Haier notebook	F12
Guanmeng motherboard	F11 or F12	Founder Notebook	F12
Foxconn motherboard	ESC or F12	Tsinghua Tongfang Notebook	F12
Topstar motherboard	F11 or F12	MSI Notebook	F11
Maxxun motherboard	ESC or F11	BenQ Notebook	F9
Yeston motherboard	F8	Gigabyte Notebook	F12
Jetway motherboard	ESC	Gateway Notebook	F12
Intel motherboard	F12	eMachines notebook	F12
Jiewei motherboard	ESC or F8	Sony notebook	ESC
Zhiming motherboard	F12	Apple Notebook	Long press the "option" key
Panying motherboard	ESC
Panzheng motherboard	ESC
Guanming motherboard	F9
Note: For other models, please try or refer to the common startup hotkeys of the above brands

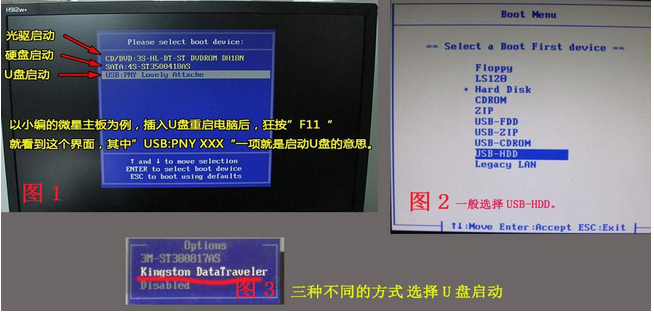

This picture shows the Bios startup interface

Step 3: Use the USB disk to boot into the PE installation system

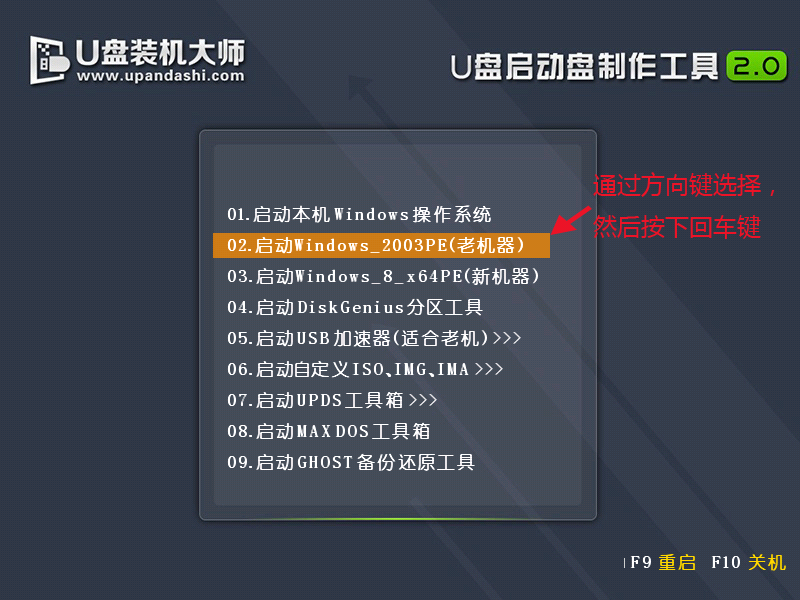

7. In the main interface of the U disk installation master, use the arrow keys to select "02. Start Windows_2003PE (old machine) "(Originally, I chose "02. Start Windows_2003PE (old machine)" or "03. Start Windows_8_x64PE (new machine)", both of which are possible, depending on your own situation. Since the author's computer configuration is older, I chose "02. Start Windows_2003PE (old machine)"). After selecting, press the Enter key to enter the PE system.

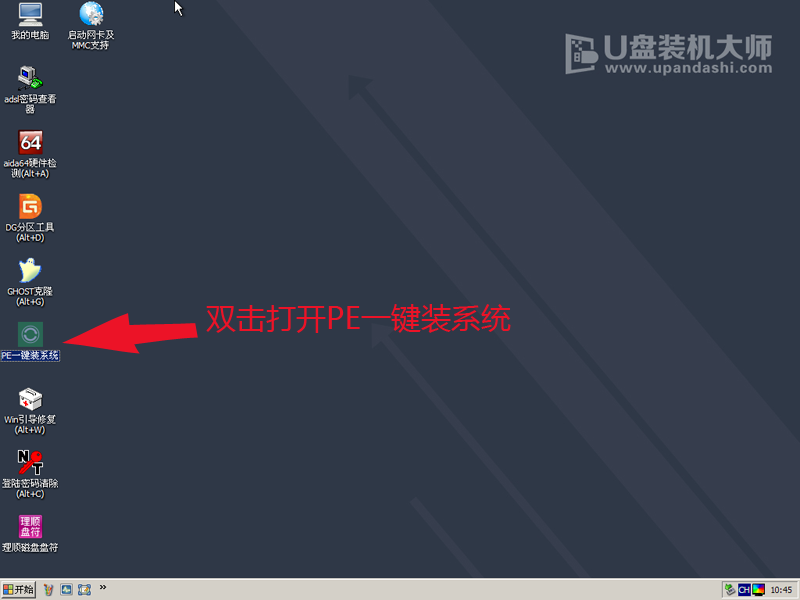

8. After entering the PE system, double-click on the desktop to open "PE One-Click System Installation".

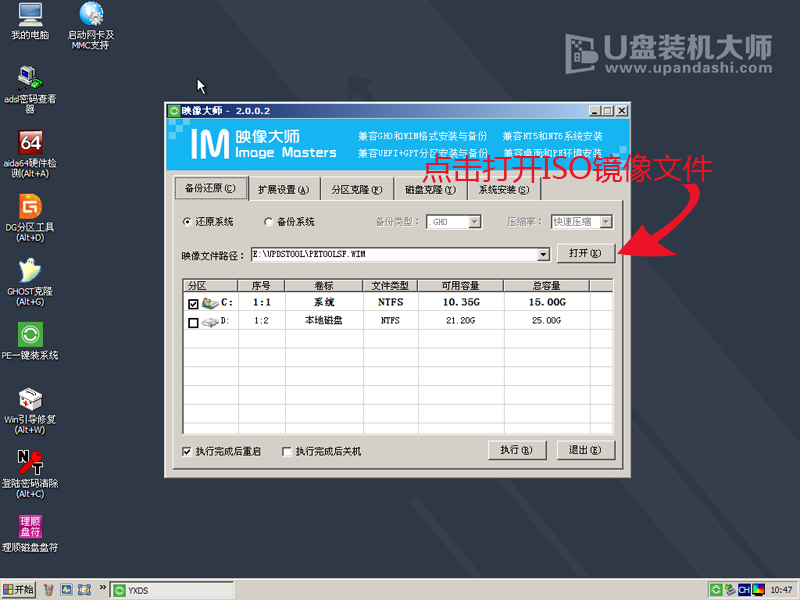

9. In the Image Master window, select the ISO image file through the "Open" button.

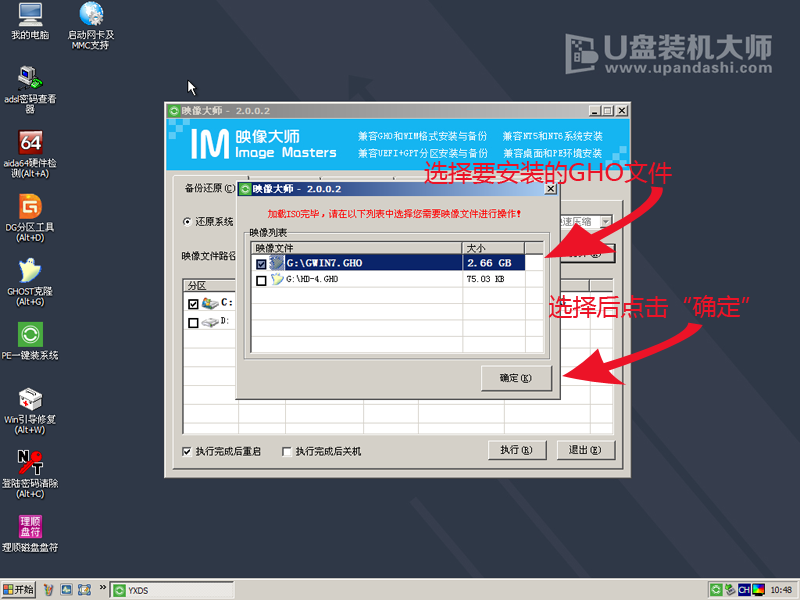

10. After the ISO is loaded, select the corresponding "GHO" file and click "OK" (if it is an image file in GHO format, you can skip this step)

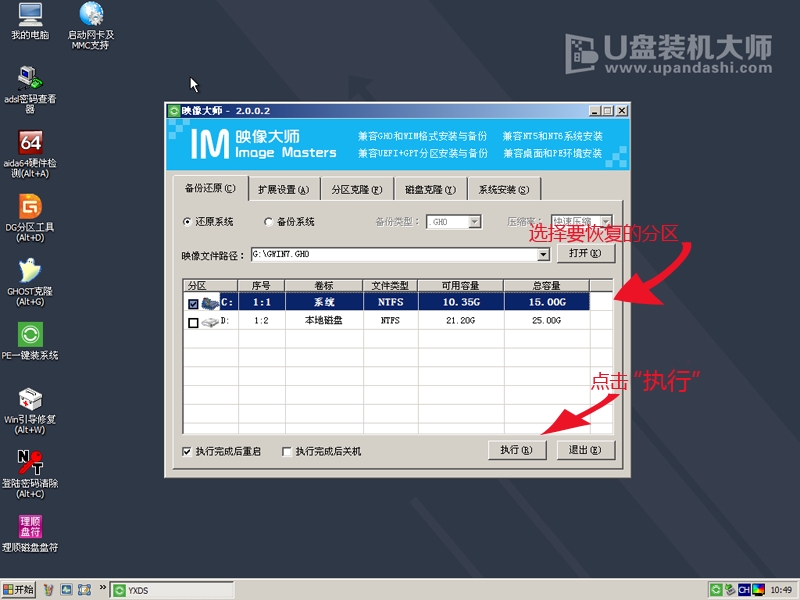

11. Then select the partition to be restored, usually the default is C: drive. Then click "Execute"

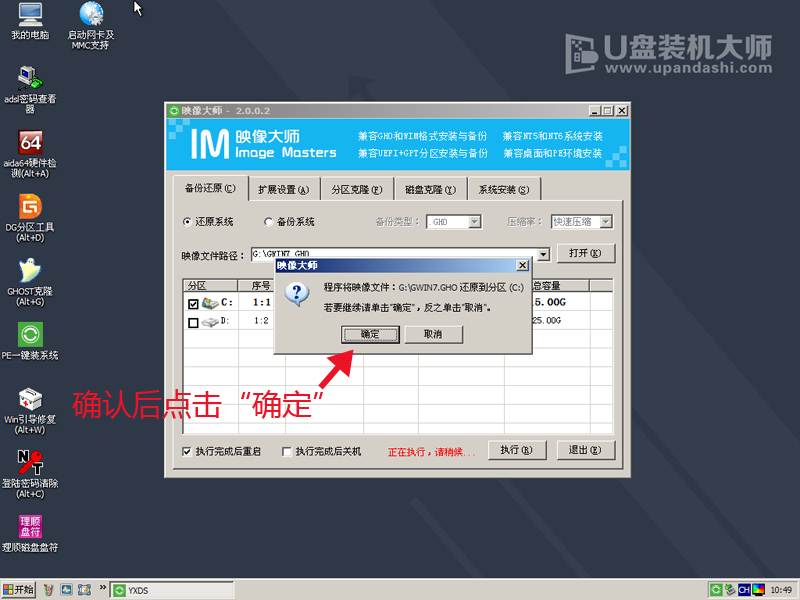

12. At this time, Image Master will pop up a prompt message. After confirming the message, click "OK"

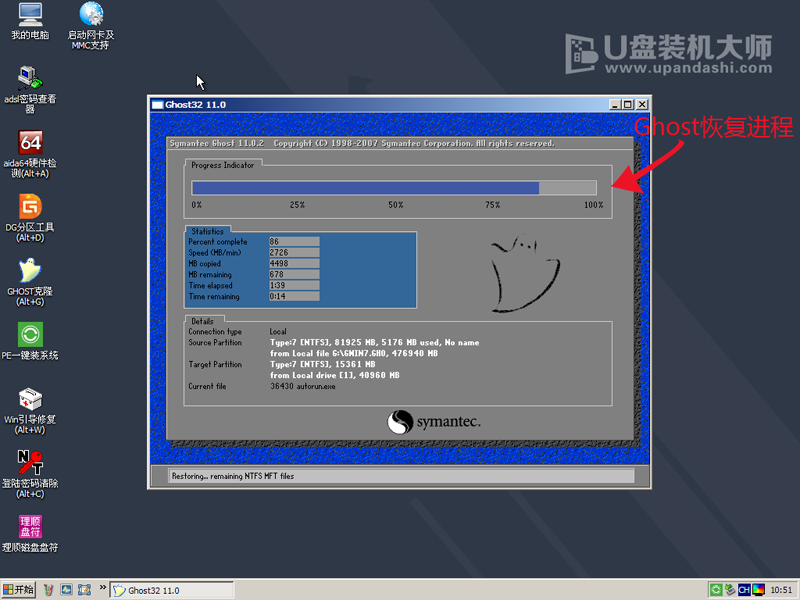

13. After that, the Ghost recovery interface will pop up, and then you just need to wait quietly for the system installation to be completed.

The above is the operation method of U disk installation master U disk boot disk installation system. Thank you for your support of U disk installation master
